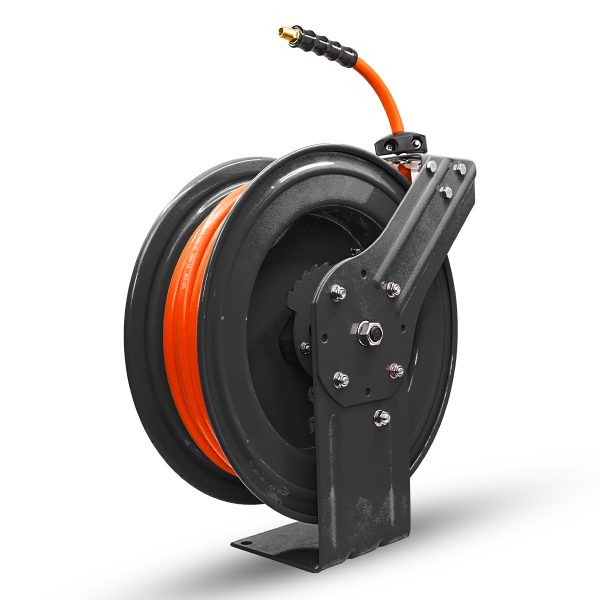

Avagard air hose reel is an ultimate combination of powder coated steel construction retractable hose reel with 12 pt. Ratchet Locking Mechanism and the flexible & durable avagard air hose . This combo is perfect for Automotive & DIY Industry. It is a great cost-effective alternative to motor driven reels.

Features

  • Unmatched 2 year warranty
  • 12 point ratchet system which helps lock out the hose at shorter lengths
  • Can also be mounted on wall, ceiling or floor, trucks and trailers
  • Specialised internal system reduces the spring vibration, enables quitter
    operations & extends the life of spring
  • Includes 3’ Lead-in hose
  • 20 gauge powder coated steel construction

Hose Features

  • 2 year limited warranty
  • Solid Brass fittings superior than aircraft aluminium
  • Ozone & UV resistance provides protection from weather
  • Flexibility in conditions from -10°F to +130°F
  • High strength polyester woven braided reinforcement
  • Oil Resistant Cover
  • 300 PSI working pressure
  • 4:1 Safety factor
  • 4 finger grip bend restrictor for better use & easier control over the hose.
Constructed with 20 gauge heavy duty steel & with ribbed edges, our air hose reel ensures strength, durability and operator safety! it provides stability and reliability in any environment.

300 PSI

Working Pressure

4:1

Safety Factor

2 Year

Warranty

-40°F

Temperature Range

Features at a glance

  • Feature Title

    Heavy Duty Steel Construction
    Impulse air hose reel is constructed with Heavy duty powder coated steel which is highly resistant to rubbing, \flaking and rust. Prolong the life of product used outdoor or in a working areas.

  • Feature Title

    12 pt. Ratchet Gearing System
    Smooth auto rewind with locking 12 point ratchet gearing system which helps to lock hose at various lengths.To latch the reel pull out the hose then allow it to retract after hearing first, second, third, forth, fifth, sixth, click.

  • Feature Title

    Horizontal & Vertical wall mount options
    Impulse Air Hose reel can be mounted in horizontal and vertical postions. One can monut the reel on floor/deck, wall and as well as on ceiling. Hose reel mounting allows you to securely mount your workplace air hose reel for your compressor needs

  • Feature Title

    Avagard PVC Air Hose
    Standard Rubber Hose designed to offer better durability & strength than traditional OPP Rubber Air Hoses.

Variations

Small
Part No. Inner Diameter
(Inch)
Length
(Feet)
Inlet Fitting
(Inch)
Outlet Fitting
(Inch)
Lead-in Hose
(Feet)
Package Dimensions
L x W x H (Inch)
Package Weight
(Pounds)
PVR3825 PVR3825 3/8 25 3/8 M-NPT 3/8 M-NPT 3 16.00 x 8.00 x 17.00 8.180 Add to Inquiry Remove
Medium
Part No. Inner Diameter
(Inch)
Length
(Feet)
Inlet Fitting
(Inch)
Outlet Fitting
(Inch)
Lead-in Hose
(Feet)
Package Dimensions
L x W x H (Inch)
Package Weight
(Pounds)
PVR3850 PVR3850 3/8 50 3/8 M-NPT 3/8 M-NPT 3 17.50 x 8.75 x 19.00 10.910 Add to Inquiry Remove
XL
Part No. Inner Diameter
(Inch)
Length
(Feet)
Inlet Fitting
(Inch)
Outlet Fitting
(Inch)
Lead-in Hose
(Feet)
Package Dimensions
L x W x H (Inch)
Package Weight
(Pounds)
PVR38100 PVR38100 3/8 100 3/8 M-NPT 3/8 M-NPT 3 21.00 x 22.50 x 9.00 20.460 Add to Inquiry Remove
