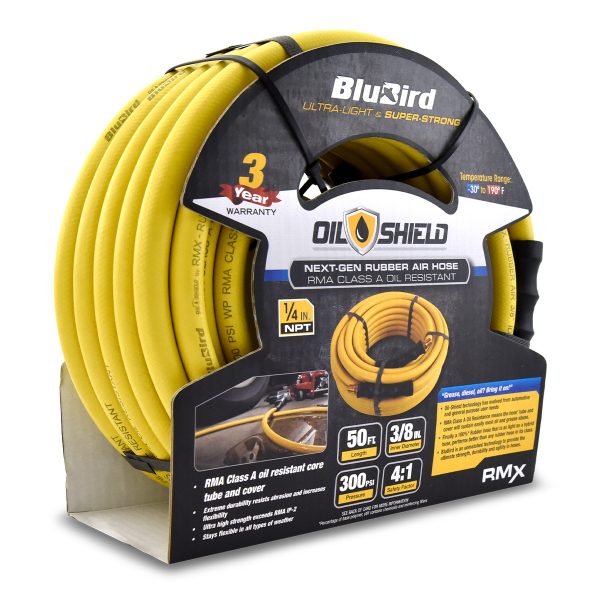

Oil-Shield is the best SHOP hose on the market today. Oil-Shield is 100% rubber with a Nitrile core and Nitrile cover giving Oil-Shield a Class A Oil-Resistance rating. The best oil resistance rating possible. Oil-Shield unlike other heavy and stiff rubber air hoses is 30% lighter than traditionally made rubber hoses, more flexible & stronger. It is the perfect shop hose where hoses come in contact with oil, diesel fuel, gas, cleaning agents and anything else found in shops including welding spatter and grinding sparks.

Features

3 year limited warranty
RMA Class A oil resistant core tube and cover
Resists welding spatters and grinding sparks
100% rubber construction
30% lighter hose than standard rubber air hoses in same class
Solid Brass fittings superior than aircraft aluminium
High strength polyester woven braided reinforcement
300 PSI working pressure
4:1 Safety factor
Maintains integrity under extreme weather conditions
Flexibility from -30°F to +190°F
Ozone resistant
Abrasion resistant
Kink Resistant
4 finger grip bend restrictor for better use & easier control over the hose.

TRULY THE ONLY BEST SHOP HOSE IN THE MARKET !

300 PSI

Working Pressure

4:1

Safety Factor

3 Year

Warranty

-50°F to 190°F

Temperature Range

Features at a glance

RMA Class A Oil Resistant
Oil-Shield is perfect for work areas where oil, diesel, grease spillage is a concern. It can remain in constant contact with oil for months & functions as good as new.
Polyester Braided Reinforcement
High strength polyester braided reinforcement Construction to prevent elongation of hose.Industrial thread and yarn add superior strength with 300 PSI working pressure with 4:1 safety factor.
Lightest, Strongest & Most Flexible
30% Lighter than other Rubber Air Hoses, Constructed with abrasion-resistant exterior cover &polyester braided reinforcement from inside. Durability in extreme conditions from -50° to 190 °F.
Temperature Flexibility
Utmost hot & cold environments are a challenge for all rubber hoses but oilshield rubber hose have flexibility to handle hot weather temperature upto 190°F and cold weather temperature upto -40°F.

Videos

Oil Shield Rubber Air Hose Intoduction
November 16, 2015
2:42
Oil Shield Rubber Air Hose
April 14, 2017
1:43
OilShield Next Gen Rubber Air Hose
June 8, 2021
2:28

Variations

Extension Air Hose

Part No.	Inner Diameter (Inch)	Length (Feet)	Fittings (Inch)	Package Dimensions L x W x H (Inch)	Package Weight (Pounds)
OS1210	1/2	10	1/2 Male NPT	10.00 x 10.00 x 3.00	2.100	Add to Inquiry Remove
OS1215	1/2	15	1/2 Male NPT	10.50 x 10.50 x 3.50	2.970	Add to Inquiry Remove
OS3810	3/8	10	1/4 Male NPT	8.50 x 8.50 x 2.50	1.340	Add to Inquiry Remove
OS3815	3/8	15	1/4 Male NPT	9.00 x 9.00 x 3.00	1.650	Add to Inquiry Remove

General Purpose Air Hose

Part No.	Inner Diameter (Inch)	Length (Feet)	Fittings (Inch)	Package Dimensions L x W x H (Inch)	Package Weight (Pounds)
OS12100	1/2	100	1/2 NPT w/ 3/8 NPT reducer	13.00 x 13.00 x 6.75	15.000	Add to Inquiry Remove
OS1225	1/2	25	1/2 NPT w/ 3/8 NPT reducer	10.75 x 10.75 x 4.00	3.910	Add to Inquiry Remove
OS1250	1/2	50	1/2 NPT w/ 3/8 NPT reducer	10.75 x 10.75 x 4.80	7.800	Add to Inquiry Remove
OS38100	3/8	100	1/4 Male NPT	12.25 x 12.25 x 5.50	11.400	Add to Inquiry Remove
OS3825	3/8	25	1/4 Male NPT	10.00 x 10.00 x 2.75	2.860	Add to Inquiry Remove
OS3835	3/8	35	1/4 Male NPT	9.50 x 9.50 x 3.50	3.850	Add to Inquiry Remove
OS3850	3/8	50	1/4 Male NPT	10.25 x 10.25 x 4.50	5.800	Add to Inquiry Remove

Lead-In Hose

Part No.	Inner Diameter (Inch)	Length (Feet)	Fittings (Inch)	Package Dimensions L x W x H (Inch)	Package Weight (Pounds)
OSLD1203	1/2	3	1/2 Male NPT	12.00 x 8.00 x 2.25	0.880	Add to Inquiry Remove
OSLD1203-38	1/2	3	3/8 Male NPT	12.00 x 8.00 x 2.25	0.850	Add to Inquiry Remove
OSLD3803	3/8	3	1/4 Male NPT	12.00 x 8.00 x 2.25	0.590	Add to Inquiry Remove
OSLD3803-38	3/8	3	3/8 Male NPT	12.00 x 8.00 x 2.25	0.610	Add to Inquiry Remove

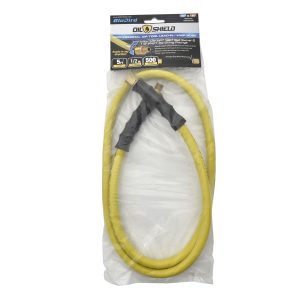

Snubber Hose

Part No.	Inner Diameter (Inch)	Length (Feet)	Fittings (Inch)	Package Dimensions L x W x H (Inch)	Package Weight (Pounds)
OSSR1202	1/2	2	1/2 Male NPT w/ 360 degree Ball Swivel x 1/2 Female NPT	12.00 x 8.00 x 1.50	0.770	Add to Inquiry Remove
OSSR3802	3/8	2	1/4 Male NPT w/ 360 degree Ball Swivel x 1/4 Female NPT	12.00 x 8.00 x 1.50	5.450	Add to Inquiry Remove
OSSR1205	1/2	5	1/2 Male NPT w/ 360 degree Ball Swivel x 1/2 Female NPT	12.00 x 8.00 x 2.25	1.050	Add to Inquiry Remove
OSSR3805	3/8	5	1/4 Male NPT w/ 360 degree Ball Swivel x 1/4 Female NPT	12.00 x 8.00 x 2.00	0.870	Add to Inquiry Remove
