PVC Air Hose designed for DIY use, with extreme durability & flexibility

Features

  • 2 year limited warranty
  • Solid Brass fittings superior than aircraft aluminium
  • Ozone & UV resistance provides protection from weather
  • Flexibility in conditions from -10°F to +130°F
  • High strength polyester woven braided reinforcement
  • Oil Resistant Cover
  • 300 PSI working pressure
  • 4:1 Safety factor
  • 4 finger grip bend restrictor for better use & easier control over the hose.

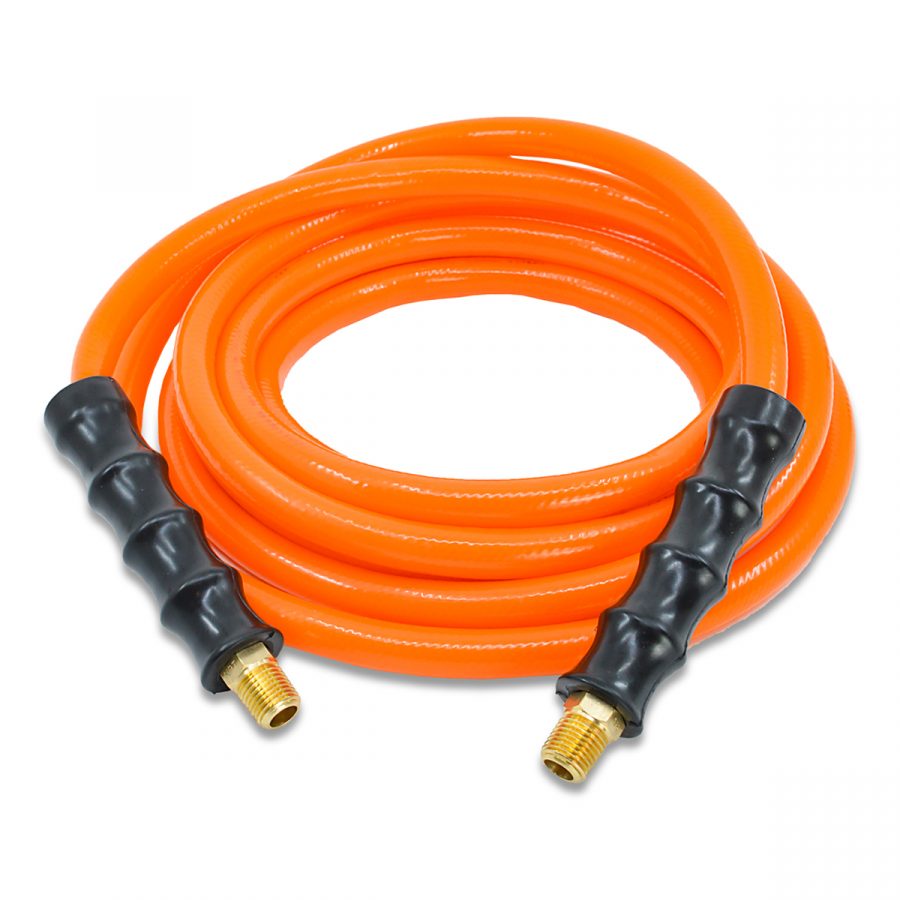

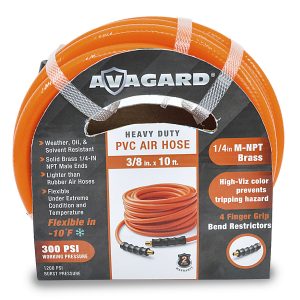

Heavy-duty & Flexible pvc air hose

300 PSI

Working Pressure

4:1

Safety Factor

1 Year

Warranty

-10°F to 130°F

Temperature Range

Features at a glance

  • Feature Title

    High strength polyester braided reinforcement.
    High strength polyester braided reinforcement Construction to prevent elongation of hose.Industrial thread and yarn add superior strength with 300 PSI working pressure with 4:1 safety factor.

  • Feature Title

    Four finger grip bend restrictor
    Avagard pvc Air Hose comes with four finger grip bend restrictor which increases the working efficiency of user. It reduces bending stress near the hose-coupling junction & prevents it from kinks.

  • Feature Title

    Temperature Flexibility
    Utmost hot & cold environments are a challenge for all rubber hoses but avagard pvc hose have flexibility to handle hot weather temperature upto -10°F to 130°F.

  • Feature Title

    Indoor Friendly

Variations

General Purpose Air Hose
Part No. Inner Diameter
(Inch)
Length
(Feet)
Fittings
(Inch)
Package Dimensions
L x W x H (Inch)
Package Weight
(Pounds)
PV14100 PV14100 1/4 100 1/4 Male NPT 22.00 x 11.00 x 10.50 2.800 Add to Inquiry Remove
PV3825 PV3825 3/8 25 1/4 Male NPT 21.50 x 9.75 x 9.75 0.900 Add to Inquiry Remove
PV3850 PV3850 3/8 50 1/4 Male NPT 14.50 x 11.00 x 11.00 1.690 Add to Inquiry Remove
PV38100 PV38100 3/8 100 1/4 Male NPT 23.50 x 11.75 x 10.75 3.250 Add to Inquiry Remove
PV1425 PV1425 1/4 25 1/4 Male NPT 7.00 x 7.00 x 3.00 0.650 Add to Inquiry Remove
PV1450 PV1450 1/4 50 1/4 Male NPT 11.50 x 10.70 x 5.00 1.200 Add to Inquiry Remove
PV14100 PV14100 1/4 100 1/4 Male NPT 22.00 x 11.00 x 10.50 2.800 Add to Inquiry Remove
PV3850 PV3850 3/8 50 1/4 Male NPT 11.00 x 11.00 x 4.50 1.690 Add to Inquiry Remove
PV38100 PV38100 3/8 100 1/4 Male NPT 23.50 x 11.75 x 10.75 3.250 Add to Inquiry Remove
Extension Air Hose
Part No. Inner Diameter
(Inch)
Length
(Feet)
Fittings
(Inch)
Package Dimensions
L x W x H (Inch)
Package Weight
(Pounds)
PV3810 PV3810 3/8 10 1/4 Male NPT 13.75 x 13.50 x 6.75 0.430 Add to Inquiry Remove
PV3815 PV3815 3/8 15 1/4 Male NPT 13.75 x 15.50 x 7.75 0.590 Add to Inquiry Remove
PV3810 PV3810 3/8 10 1/4 Male NPT 13.75 x 13.50 x 6.75 0.430 Add to Inquiry Remove
PV3815 PV3815 3/8 15 1/4 Male NPT 13.75 x 15.50 x 7.75 0.590 Add to Inquiry Remove
