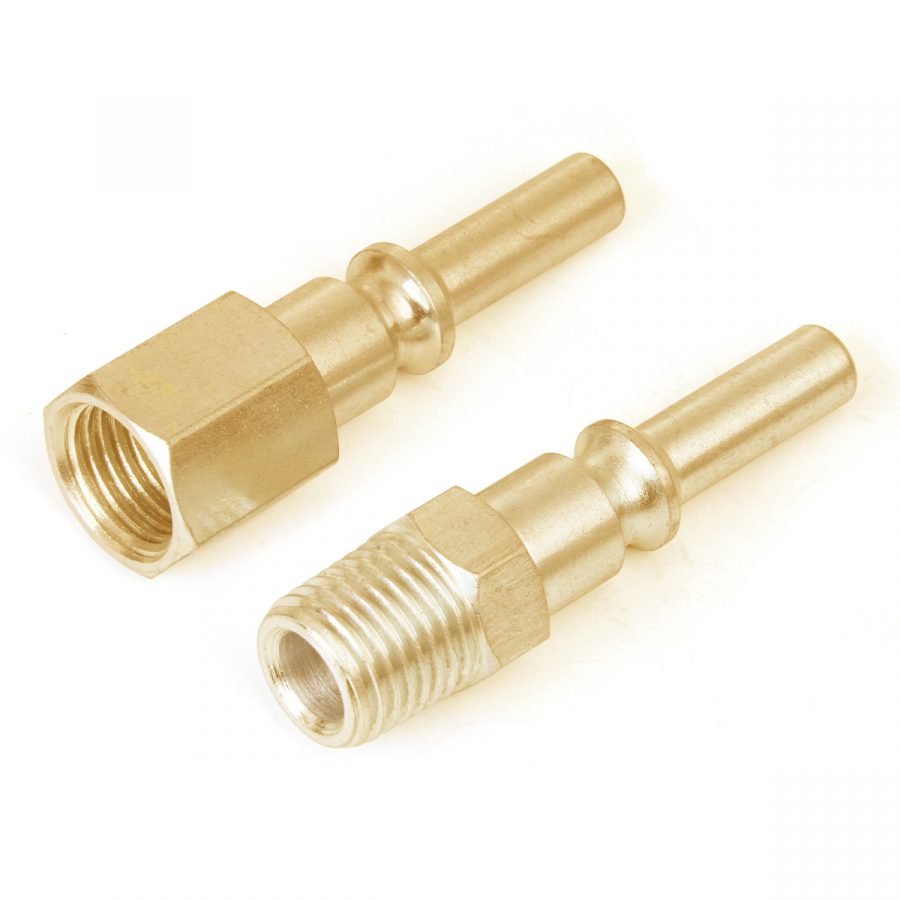

1/4″ NPT L style plugs are case hardened steel plated to resist rust and have a working pressure of up to 300 PSI. 1/4″ basic flow size with air flow of 32 SCFM.

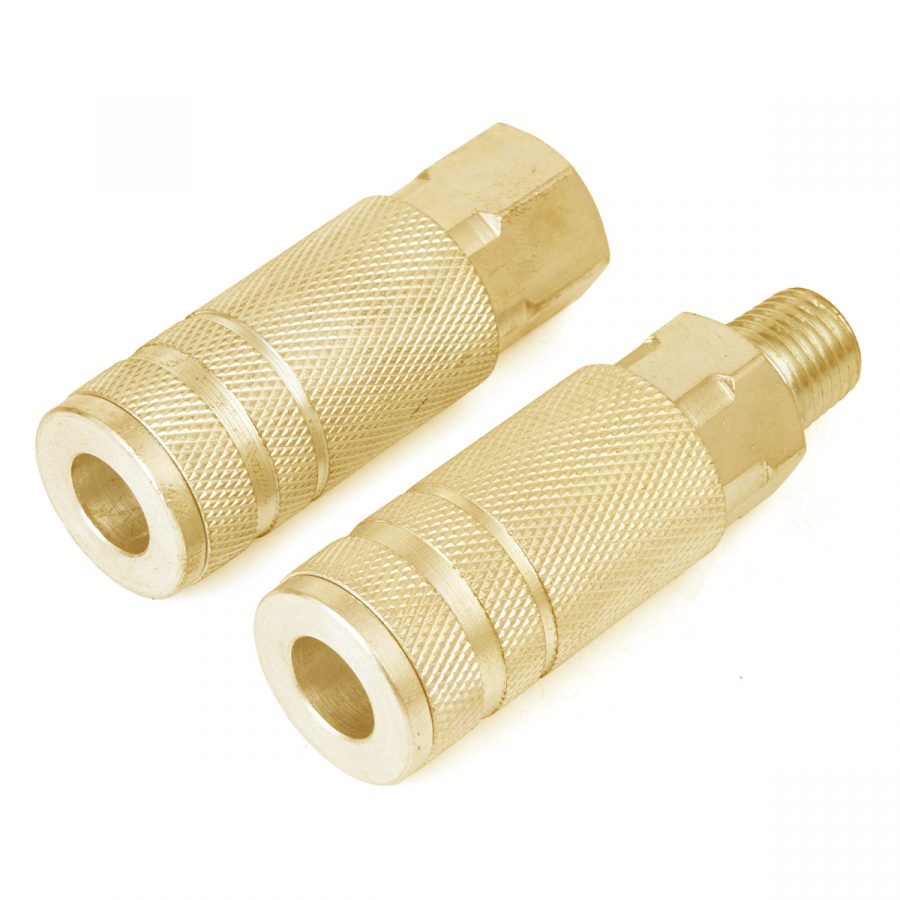

1/4″ NPT L style coupler is steel plated to resist rust. L style couplers have a 1/4″ basic flow size and a maximum pressure of 300 PSI. This push type coupler has a Maximum of 32 SCFM and a Buna-N seal.

Features

Coupler

  • Solid Heavy-Duty Construction with Ball Locking Mechanism
  • Nitrile Seals for optimum performance in extreme temperatures
  • Lincoln / L-Style Interchange – Adapts to all Lincoln/ L-Style plugs/nipples. Deep Knurled socket sleeve for positive gripping
  • 1/4” Body Size

Plug

  • Solid Heavy-Duty Construction
  • Optimal sealing and high efficiency with LOCTITE sealant on threads
  • Lincoln / L-Style Interchange – Adapts to all Lincoln/ L-Style Couplers
  • 1/4” Body Size

Variations

Coupler
Part No. Description NPT SCFM Material Package Dimensions
L x W x H (Inch)
Package Weight
(Pounds)
CI1401 CI1401 1/4" MNPT Brass Male Industrial Coupler - 1/4 I/M 1/4 35 Brass x x Add to Inquiry Remove
CI1407 CI1407 1/4" MNPT Steel Male Industrial Coupler - 1/4 I/M 1/4 35 Steel x x Add to Inquiry Remove
CI1408 CI1408 1/4" FNPT Steel Female Industrial Coupler - 1/4 I/M 1/4 35 Steel x x Add to Inquiry Remove
CI1409 CI1409 1/4" MNPT Steel Male Industrial Coupler - Swivel - 1/4 I/M 1/4 35 Steel x x Add to Inquiry Remove
CL1401 CL1401 1/4" MNPT Brass Male Lincoln Coupler - 1/4 L 1/4 35 Brass x x Add to Inquiry Remove
CL1402 CL1402 1/4" FNPT Brass Female Lincoln Coupler - 1/4 L 1/4 35 Brass x x Add to Inquiry Remove
CL1403 CL1403 1/4" MNPT Brass Male Lincoln Coupler - Swivel - 1/4 L 1/4 35 Brass x x Add to Inquiry Remove
CL1404 CL1404 1/4" FNPT Brass Female Lincoln Coupler - Swivel - 1/4 L 1/4 35 Brass x x Add to Inquiry Remove
CL1405 CL1405 3/8" MNPT Brass Male Lincoln Coupler - 1/4 L 3/8 35 Brass x x Add to Inquiry Remove
CL1406 CL1406 3/8" FNPT Brass Female Lincoln Coupler - 1/4 L 3/8 35 Brass x x Add to Inquiry Remove
CL1407 CL1407 1/4" MNPT Steel Male Lincoln Coupler - 1/4 L 1/4 35 Steel x x Add to Inquiry Remove
CL1408 CL1408 1/4" FNPT Steel Female Lincoln Coupler - 1/4 L 1/4 35 Steel x x Add to Inquiry Remove
CL1409 CL1409 1/4" MNPT Steel Male Lincoln Coupler - Swivel - 1/4 L 1/4 35 Brass x x Add to Inquiry Remove
CL1410 CL1410 1/4" FNPT Steel Female Lincoln Coupler - Swivel - 1/4 L 1/4 35 Steel x x Add to Inquiry Remove
CL1411 CL1411 3/8" MNPT Steel Male Lincoln Coupler - 1/4 L 3/8 35 Steel x x Add to Inquiry Remove
CL1412 CL1412 3/8" FNPT Steel Female Lincoln Coupler - 1/4 L 3/8 35 Steel x x Add to Inquiry Remove
Part No. Description NPT SCFM Material Package Dimensions
L x W x H (Inch)
Package Weight
(Pounds)
CI1402 CI1402 1/4" FNPT Brass Female Industrial Coupler - 1/4 I/M 1/4 35 Brass x x Add to Inquiry Remove
CI1403 CI1403 1/4" MNPT Brass Male Industrial Coupler - Swivel - 1/4 I/M 1/4 35 Brass x x Add to Inquiry Remove
Plug
Part No. Description NPT SCFM Material Package Dimensions
L x W x H (Inch)
Package Weight
(Pounds)
PL1401 PL1401 1/4" MNPT Brass Male Lincoln Plug - 1/4 L 1/4 35 Brass x x Add to Inquiry Remove
PL1402 PL1402 1/4" FNPT Brass Female Lincoln Plug - 1/4 L 1/4 35 Brass x x Add to Inquiry Remove
PL1403 PL1403 1/4" MNPT Brass Male Lincoln Plug - Swivel - 1/4 L 1/4 35 Brass x x Add to Inquiry Remove
PL1404 PL1404 1/4" FNPT Brass Female Lincoln Plug - Swivel - 1/4 L 1/4 35 Brass x x Add to Inquiry Remove
PL1405 PL1405 3/8" MNPT Brass Male Lincoln Plug - 1/4 L 3/8 35 Brass x x Add to Inquiry Remove
PL1406 PL1406 3/8" FNPT Brass Female Lincoln Plug - 1/4 L 3/8 35 Brass x x Add to Inquiry Remove
PL1407 PL1407 1/4" MNPT Steel Male Lincoln Plug - 1/4 L 1/4 35 Steel x x Add to Inquiry Remove
PL1408 PL1408 1/4" FNPT Steel Female Lincoln Plug - 1/4 L 1/4 35 Steel x x Add to Inquiry Remove
PL1409 PL1409 1/4" MNPT Steel Male Lincoln Plug - Swivel - 1/4 L 1/4 35 Steel x x Add to Inquiry Remove
PL1410 PL1410 1/4" FNPT Steel Female Lincoln Plug - Swivel - 1/4 L 1/4 35 Steel x x Add to Inquiry Remove
PL1411 PL1411 3/8" MNPT Steel Male Lincoln Plug - 1/4 L 3/8 35 Steel x x Add to Inquiry Remove
PL1412 PL1412 3/8" FNPT Steel Female Lincoln Plug - 1/4 L 3/8 35 Steel x x Add to Inquiry Remove
